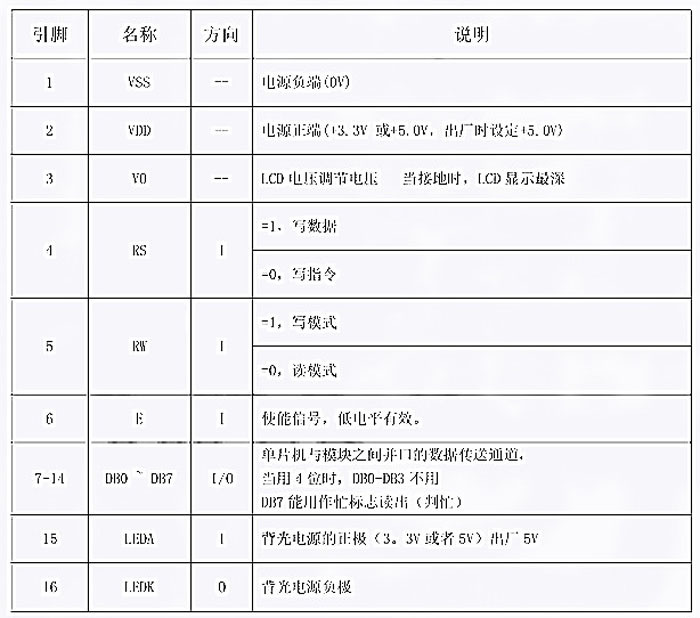

3. interface definition:

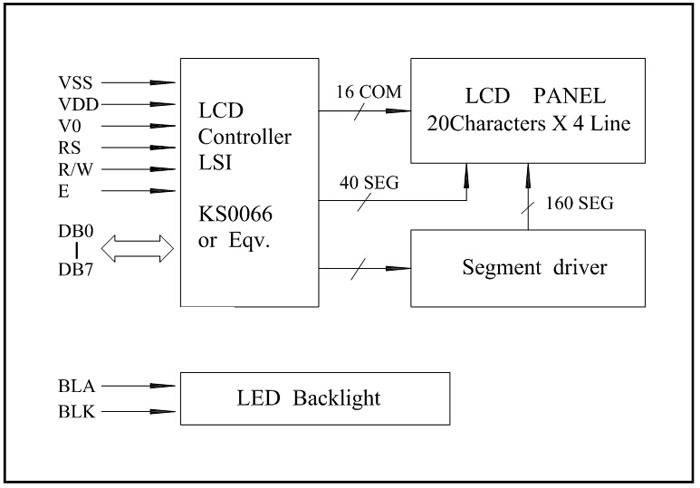

4. structure and composition:
Sales Hotline:0755-29888123
24-hour service hotline:18926066896
FAX: 0755-89487126
Q Q：1186440576
Want No:Hengxunchuang Technology CO.,LTD
Mailbox:hxcyxgs@163.com
Address:No. 93 Bao'an District of Shenzhen City manhole Street Gang Gang Xia Road, Pok
LCD2004 LCD blue 77*47 small size LCD module IC KS0066
访问资料： 发布日期：2015-11-25 12:43

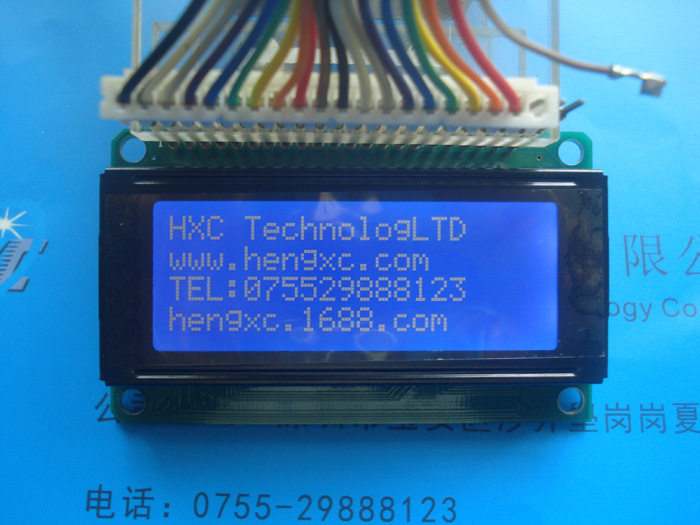

1. picture:
2. the overall dimensions:
Product number: LCM2004B
Display: 20 (column) * 04 (row)
Overall dimensions: 77x 47 x 13.5 (mm)
View dimensions: 60.5 x 22.6
Working voltage: +5V/+3.3V
Control chip: KS0066 (SPLC780)
Operating temperature:-20 ℃ ~ 70℃
Storage temperature:-30 ℃ ~ 80℃
Product features: display 4 lines, 20 characters each line dot matrix LCDmodule, supports 4-bit or
8-bit data transfer, provided 5x7 of the dots + cursor display mode
