LCD320240 5.7-inch LCD screen with blue film RA8806 LCD touc

访问资料： 发布日期：2015-10-26 17:09

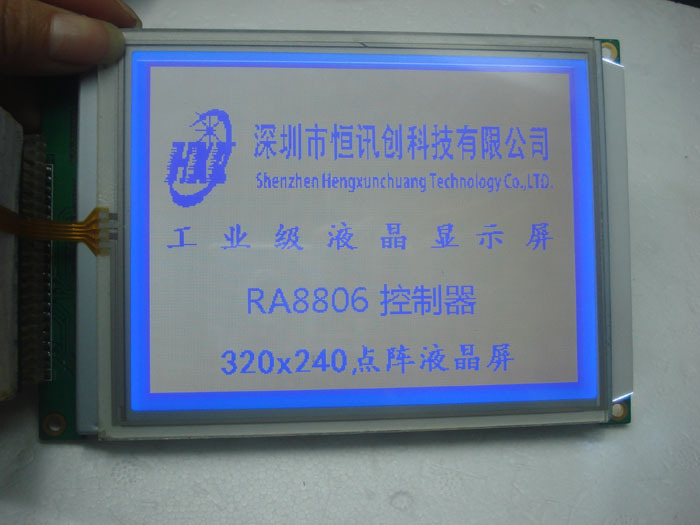

1.The physical map:




2.Dimensions:

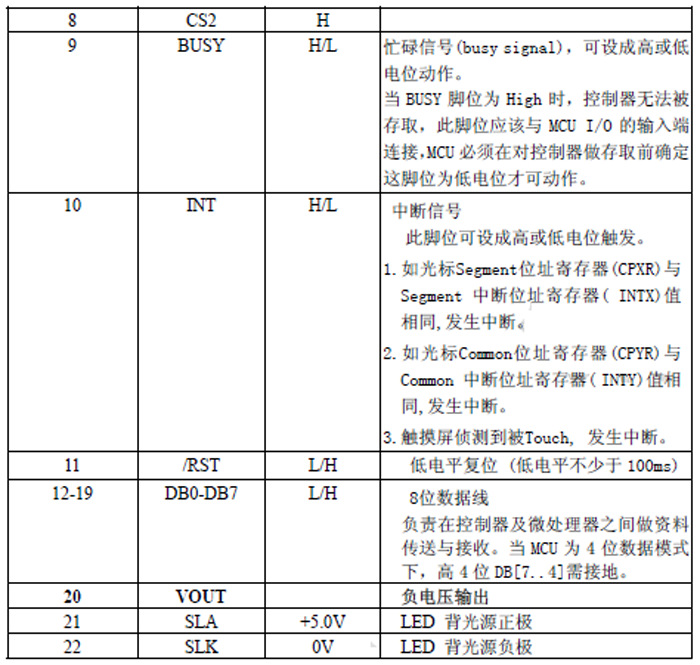

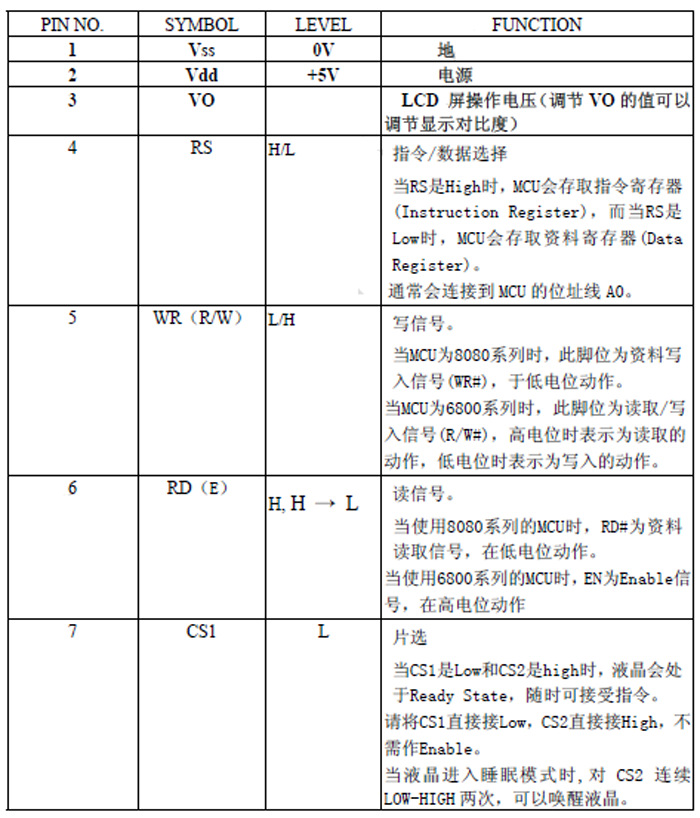

3.The interface definition:

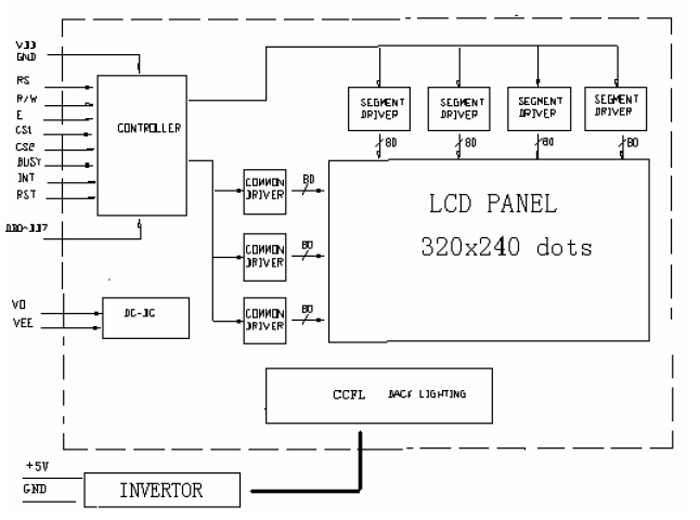

4.Principle of Composition:








5.Functional Description:

  1. Support mixed text and graphical display modes
         2. Simplified Chinese font induced internal and ASCII font ROM
         3. Support 90 degrees, 180 degrees, 270 degrees rotating display text
         4. Support 1 to 4 times the font zoom function (horizontal and vertical)
         5. Support in bold and row to row spacing setting function
         6. Built-in intelligent scanning Resistive Touch Controller


6.The main technical parameters:

  (1) Power:. VDD = + 5V, the module automatically -24V output voltage (VOUT-VSS =
            -24V)
        (2) Display: 320 (column) X 240 (OK)

        (3) Drive mode: 1/240 DUTY, 1/17 BIAS

        (4) Display mode:. FSTN Positive Display transflective (black and white)

        (5) The backlight feature: White LED backlight side, current: 220MA, DC +
             5V drive
        (6) control chip: RA8806 (comes with Chinese character)

The physical map:
