Blue film pattern LCD240128 5V LCD dot matrix LCD display co
访问资料: 发布日期:2015-10-29 17:02

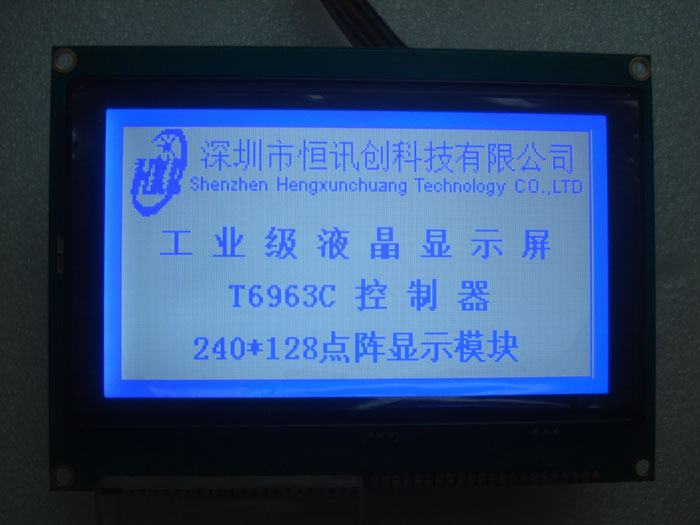

1.Physical map:

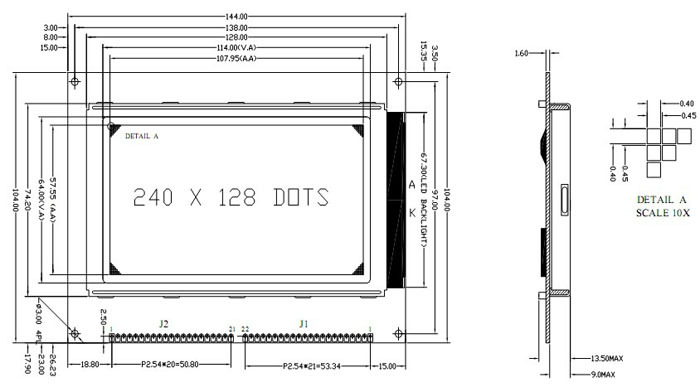

2.dimensional drawing:

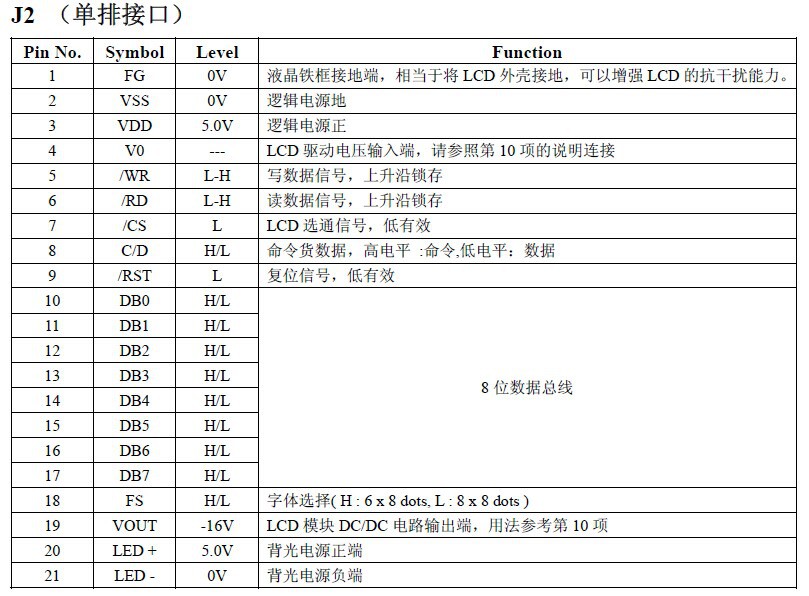

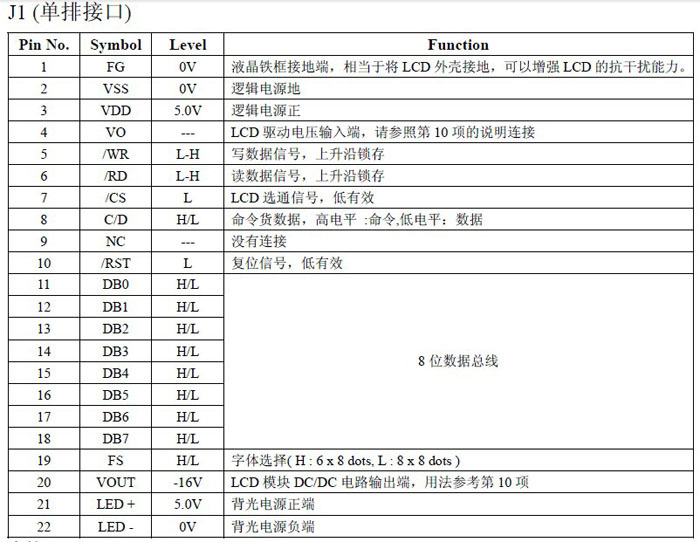

3.interface definition:

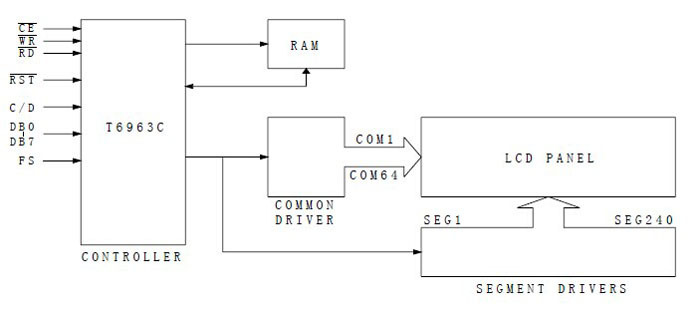

4.principle of composition:
[Product Model]: LCM240128B-V2.0
[Product Type]: dot matrix LCD module
[Display]: 240 (column) * 128 (OK) point
[Dimensions]: 144 * 104 * 13.5
[Horizon size] : 114 × 64
[Dot size]: 0.40 × 0.40
[Display Mode]: green, blue, gray
[Perspective Display]: 6:00 Perspective
[Control chip]: T6963
[Operating voltage] : + 5V / + 3.3V
[Storage temperature]: room temperature (temperature 0 ~ + 50 ℃, Storage temperature -10 ~ + 60 ℃);
Wide temperature (operating temperature -20 ~ + 70 ℃, Storage temperature -30 ~ + 80 ℃).
