LCD12864 LCD yellow-green film 93 * 70 dot matrix LCD screen

访问资料： 发布日期：2015-10-29 16:34

1.The physical map:

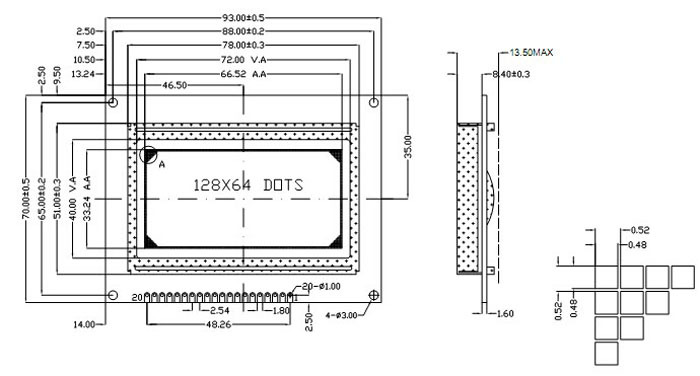

    2.Dimensions:

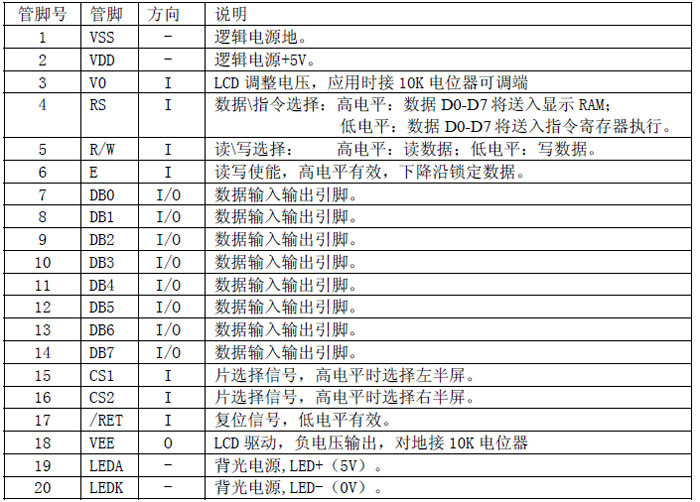

  3.The interface definition:

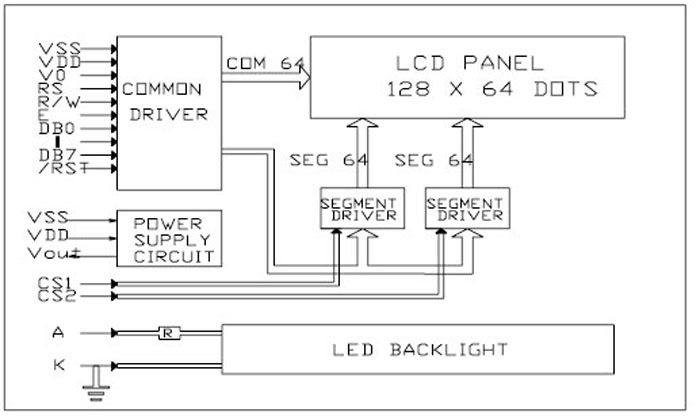

 4.The principle structure diagram:



  Product Type: LCM12864C-1

  Display: 128 (column) * 64 (row) point

  Dimensions (mm): 93 * 70 * 13.5

  Depending on field size (mm): 72 * 40

  Point Size (mm): 0.48 * 0.48

  Controller: KS0108

  (1) Voltage: 3.3V, 5.0V

  (2) STN face reflection mode

  (3) the explicit mode: yellow-green film, gray film, blue film

  (4) explicitly angle: 6 o'clock look into

  (5) with the CPU interface uses 8-bit data bus and 8 parallel input and output control lines

  (6) use and storage temperature: room temperature (temperature 0 ~ + 50 ℃, Storage temperature -10 ~ + 60 ℃); wide temperature (operating temperature -20 ~ + 70 ℃, Storage temperature -30 ~ + 80 ℃) .

  (7) The backlight features: LED backlight (yellow-green, white, blue, red)

  (8) module packages: COB

  (9) Power consumption: module comes with negative pressure
