LCD19264 Chinese character LCD screen ST7920 LCD universal s

访问资料： 发布日期：2015-10-29 17:55

1.The physical map:

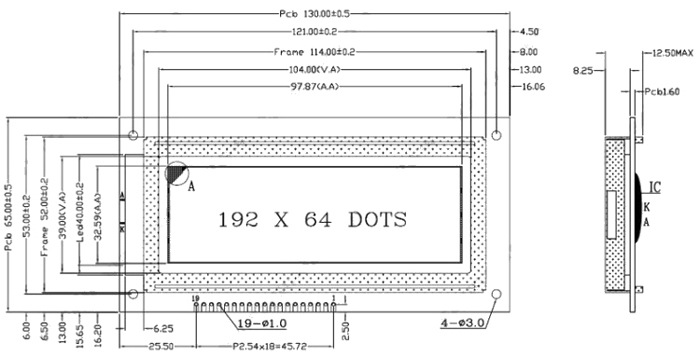

       2.Dimensions:

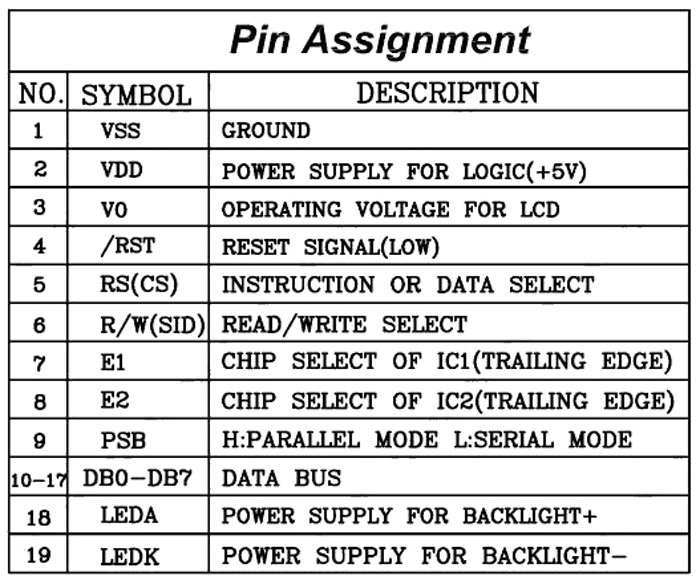

3.The interface definition:







   [Model]: LCM19264F

        [Number of lattice points]: 192 × 64

        [Dimensions]: 130.0 × 65.0 × 12.5

        [Horizon] size: 104.0 × 39.0

        [Dot size]: 0.46 × 0.46

        [Distance between points]: 0.50 × 0.50

        [Display Mode]: STN (green, blue, gray) mode

        [Perspective] Display: 6:00 Perspective

        [Control chip]: ST7920

        [Operating voltage]: + 5V / + 3.3V

        [Temperature]: -20 ℃ ~ 70 ℃

        [Storage temperature]: -30 ℃ ~ 80 ℃


4. Functions and features:


          • Chinese character type LCD module can display letters, numbers, Chinese fonts and graphics, with graphics and text mixed display screen. Can display 192 (columns) × 64 (rows) lattice. Complete graphical display can also display 12 × 4 个 (16 × 16 dot matrix) Chinese characters.
         • Provide three control interface: 8-bit microprocessor interface, 4 microprocessor interface, serial interface.
         • module built 2M- bit Chinese font ROM (CGROM) A total of 8192 Chinese fonts (16 × 16 dot matrix), 16K- bit half-width font ROM (HCGROM) providing a total of 126 symbols font (16 × 8 dot matrix), 64 × 16- bit display RAM (DDRAM), another graphics display offers a 64 × 256 points in the drawing area (GDRAM), you can mix and text display screen.
         • Provide multifunction instructions: Clear screen (Display clear), the cursor homing (Return home), the display on / off (Display on / off), the cursor display / hide (Cursor on / off), the display blinks (Display character blink ), the cursor shift (Cursor shift), display shift (Display shift), vertical screen scrolling (Vertical line scroll), highlighted (reverse display).
         • LCD module (LCM) of LCD color yellow-green, blue, gray, available for customers to choose.
         • Use and storage temperature: room temperature (temperature 0 ~ + 50 ℃, Storage temperature -10 ~ + 60 ℃); wide temperature (operating temperature -20 ~ + 70 ℃, Storage temperature -30 ~ + 80 ℃); Ultra Wide temperature (operating temperature -30 ~ + 80 ℃, Storage temperature -40 ~ + 80 ℃), available for customers to choose.
        • Module voltage 5.0V and 3.3V for customers to choose, before the need to factory settings.

The physical map:
