LCD0802 LCD screen appearance 58X32 blue and white LCD displ

访问资料： 发布日期：2015-10-29 16:24

1.The physical map:

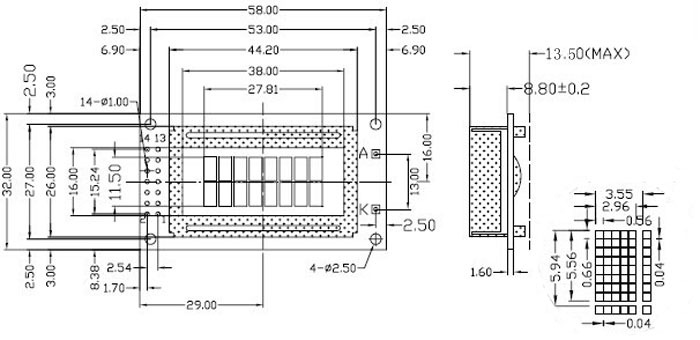

       2.Dimensions:

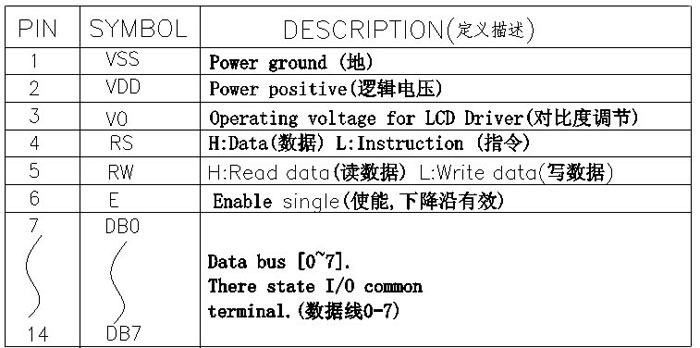

     3.The interface definition:

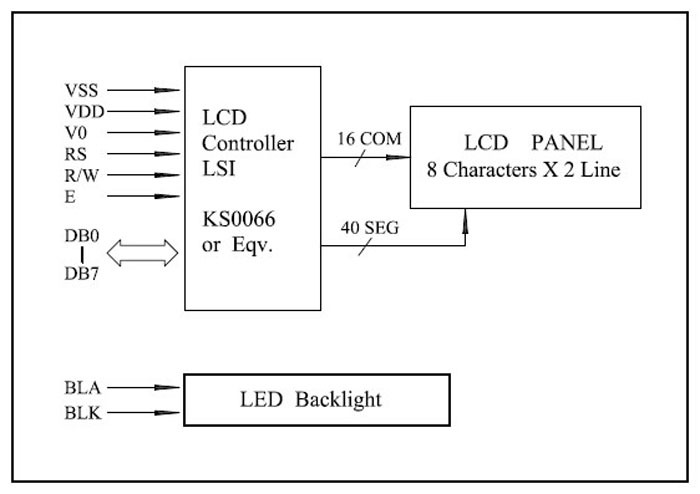

4.structural principle:



         [Model]: LCM0802A

         [Product Type]: character dot matrix LCD module

         [Display]: 08 (column) * 02 (row) point

         [Dimensions]: 58 * 32 * 13.5

         [Horizon size]: 38 × 16

         [Dot size]: 0.56 × 0.66

         [Character size]: 2.96 × 5.56

         [Display Mode]: green, blue, gray

         [Perspective] Display: 6:00 Perspective

         [Control chip]: S6A0069 and compatible

         [Operating voltage]: + 5V / + 3.3V

         [Storage temperature]: room temperature (temperature 0 ~ + 50 ℃, Storage temperature -10 ~ + 60 ℃);

                                           Wide temperature (operating temperature -20 ~ + 70 ℃, Storage temperature -30 ~ + 80 ℃).

         5. Functions and Features:

         LCM0802A character LCD module is designed to display letters, numbers, symbols, dot matrix LCD module can display two lines of eight characters. 4 and 8 support data transmission. Provide 5 × 7 dot matrix + cursor display mode. Display data buffer DDRAM, character generator and character generator CGROM CGRAM, you can use to store up to eight CGRAM 5 × 8 dot matrix data graphic character define yourself. Provides a rich instruction set: clear display; cursor back to the origin; display on / off; cursor on / off; display blinks; cursor shift; display displacements.
