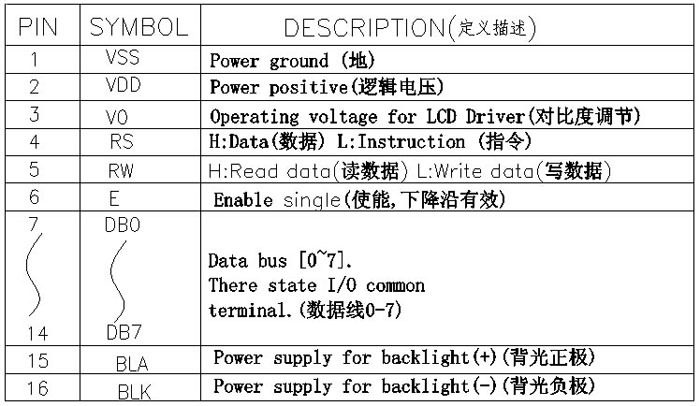

3.The interface definition:

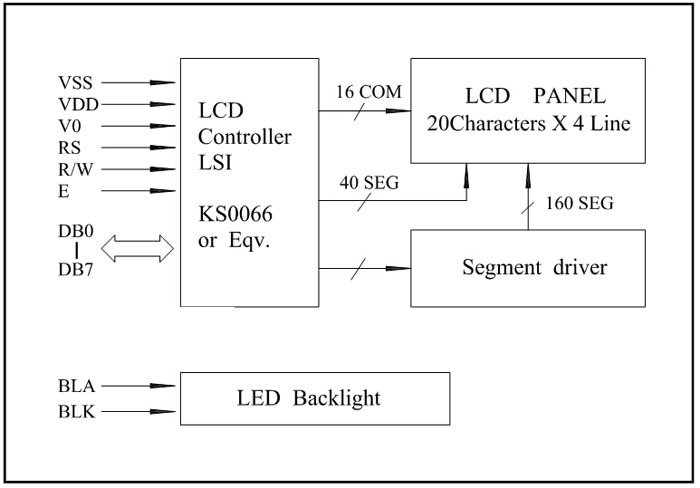

4.The structure of the composition:
Sales Hotline:0755-29888123
24-hour service hotline:18926066896
FAX: 0755-89487126
Q Q：1186440576
Want No:Hengxunchuang Technology CO.,LTD
Mailbox:hxcyxgs@163.com
Address:No. 93 Bao'an District of Shenzhen City manhole Street Gang Gang Xia Road, Pok
LCD2004 LCD blue and white LCD screen (module) with backligh
访问资料： 发布日期：2015-10-29 16:18

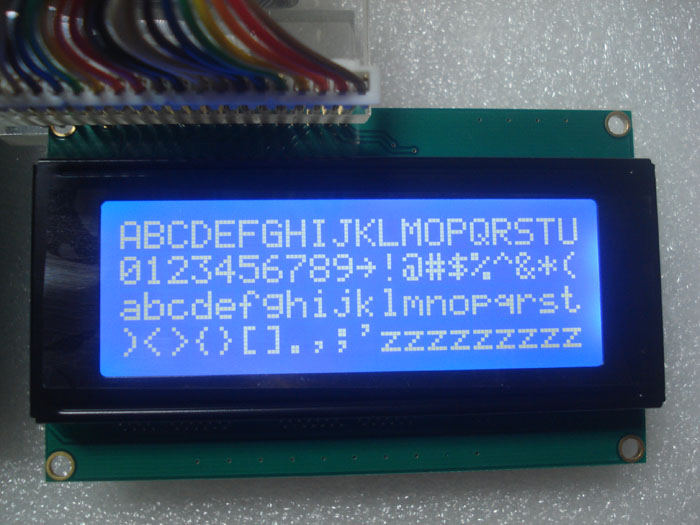

1.The physical map:

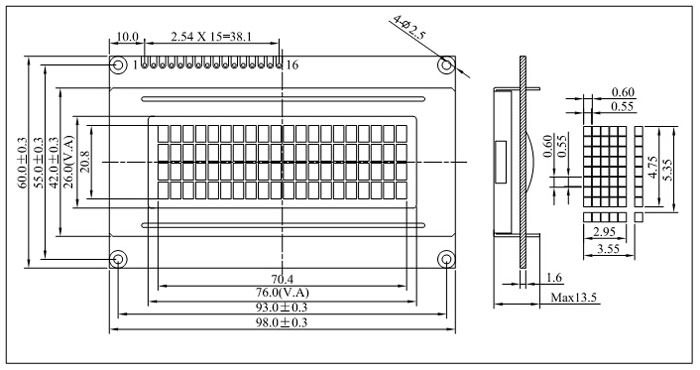

2.Dimensions:
Product Type: LCM2004A
Display: 20 (column) * 04 (row) point
Dimensions: 98 x 60 x 13.5 (mm)
Sight size: 76 x 26
Operating voltage: + 5V / + 3.3V
Control chip: KS0066 (compatible SPLC780)
Working temperature: -20 ℃ ~ 70 ℃
Storage temperature: -30 ℃ ~ 80 ℃
Features: You can display 4 lines, 20 characters per line dot matrix LCD module, supports four or8 data transfer, 5 × 7 dot matrix display mode + cursor
Display: 20 (column) * 04 (row) point
Dimensions: 98 x 60 x 13.5 (mm)
Sight size: 76 x 26
Operating voltage: + 5V / + 3.3V
Control chip: KS0066 (compatible SPLC780)
Working temperature: -20 ℃ ~ 70 ℃
Storage temperature: -30 ℃ ~ 80 ℃
Features: You can display 4 lines, 20 characters per line dot matrix LCD module, supports four or8 data transfer, 5 × 7 dot matrix display mode + cursor
