New LCD12864 LCD blue film shape 78 * 70 dot matrix LCD disp
访问资料: 发布日期:2015-10-29 18:11
1.The physical map:

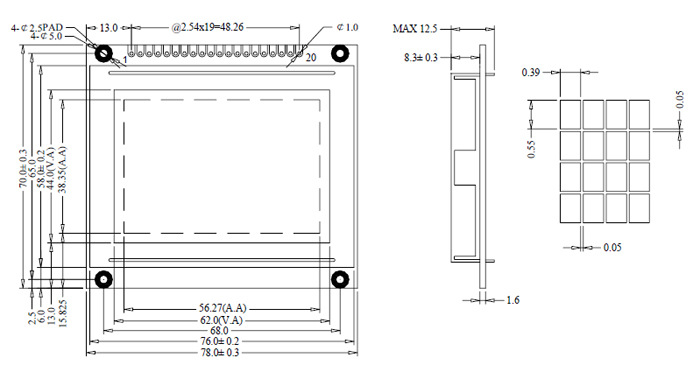

2.Dimensions:
3.The interface definition:

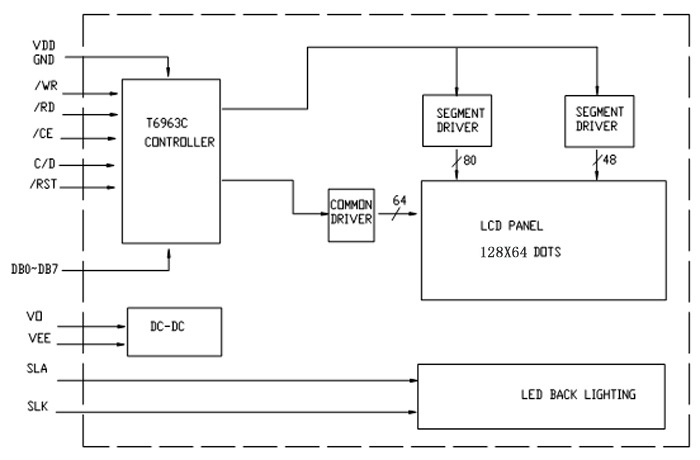

4.The principle structure diagram:
Product Type: LCM12864F
Display: 128 (column) * 64 (row) point
Dimensions (mm): 78 * 70 * 13
Depending on field size (mm): 62 * 44
Point Size (mm): 0.40 * 0.56
Controller: T6963
(1) Voltage: 3.3V, 5.0V
(2) STN face reflection mode
(3) the explicit mode: yellow-green film, gray film, blue film
(4) explicitly angle: 6 o'clock look into
(5) with the CPU interface uses 8-bit data bus and 8 parallel input and output
control lines
(6) use and storage temperature: room temperature (temperature 0 ~ + 50 ℃
, Storage temperature -10 ~ + 60 ℃); wide temperature (operating
temperature - 20 ~ + 70 ℃, Storage temperature -30 ~ + 80 ℃) .
(7) The backlight features: LED backlight
(8) module packages: COB
(9) Power consumption: module comes with negative pressure
