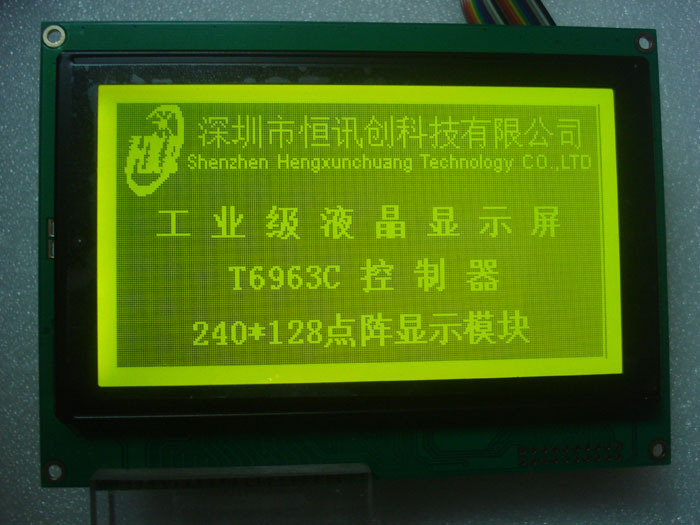

Yellow-green film pattern LCD240128 LCD dot matrix LCD displ

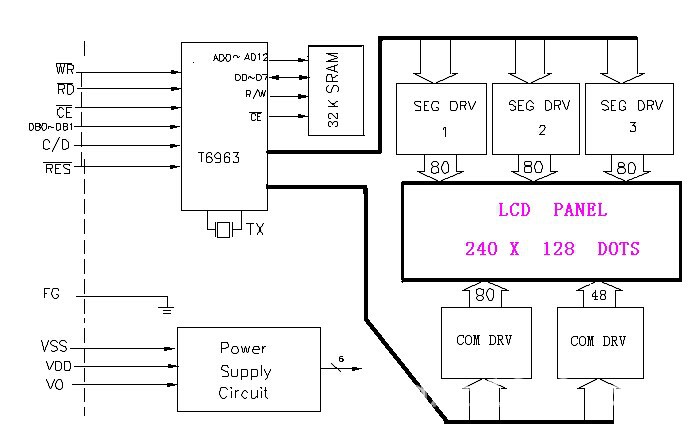

       3.The structure of the composition:

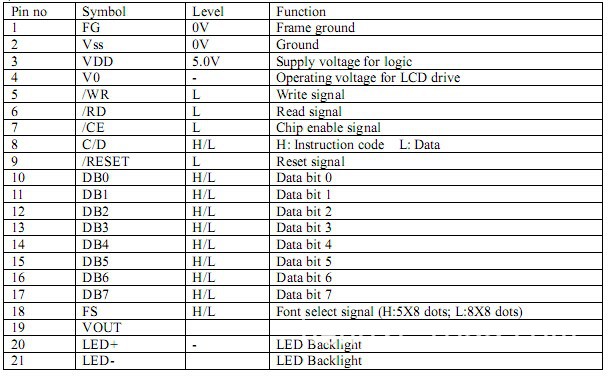

        4. Interface definition:


         [Model]: LCM240128A-V3.0

         [Product Type]: dot matrix LCD module

         [Display]: 240 (column) * 128 (OK) point

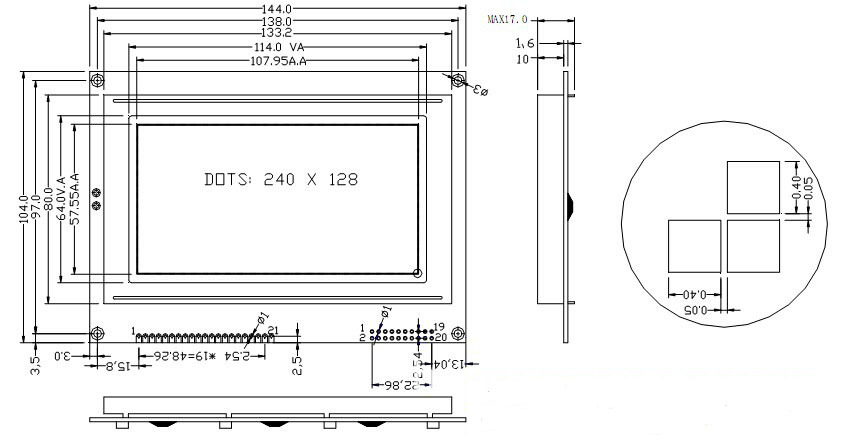

         [Dimensions]: 144 * 104 * 13.5

         [Horizon size]: 114 × 64

         [Dot size] : 0.40 × 0.40

         [Display Mode]: green, blue, gray

         [Perspective Display]: 6:00 Perspective

         [Control chip]: T6963

         [Operating voltage]: + 5V / + 3.3V

         [Storage temperature]: room temperature (temperature 0 ~ + 50 ℃, Storage temperature -10 ~ + 60 ℃);

                                             Wide temperature (operating temperature -20 ~ + 70 ℃, Storage temperature -30 ~ + 80 ℃).
