LCD19264 LCD blue film LCD KS0108 controller optional 5V

访问资料： 发布日期：2015-10-29 17:54

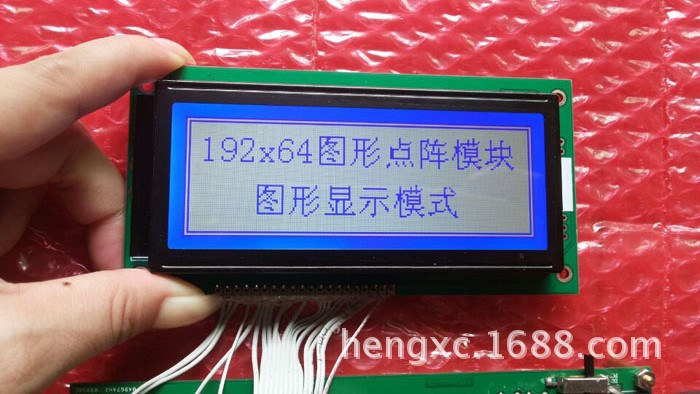

1.The following is a sample anti-white picture:

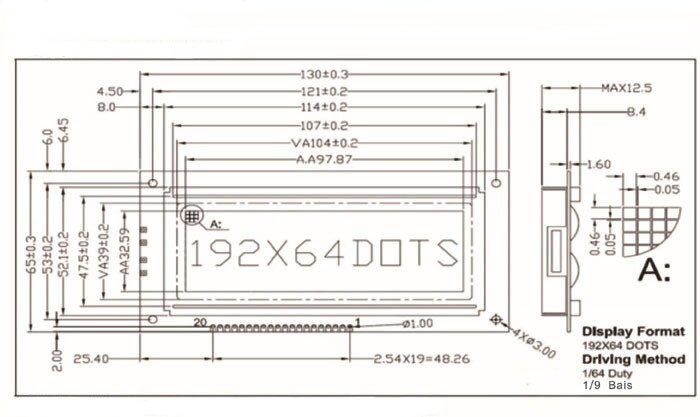

       2.Dimensions:





3.The interface definition:









4.Product Description:



      [Model]: LCM19264B

           [Number of lattice points]: 192 × 64

           [Inch looks best]: 130.0 × 65.0 × 13.5

           [Make-inch sight]: 104.0 × 39.0

           [Dot size]: 0.46 × 0.46

           [Controller]: KS0107 and compatible

           [Operating voltage]: + 5V / + 3.3V

           [Of Display]: green / blue / black and white / gray screen

           [Backlight Color]: green / white / red, etc.


           ※ use and storage temperature: room temperature (temperature 0 ~ + 50 ℃, Storage temperature -10 ~ + 60 ℃);
             Wide temperature (operating temperature -20 ~ + 70 ℃, Storage temperature -30 ~ + 80 ℃);

             Wide temperature (operating temperature -30 ~ + 80 ℃, Storage temperature -40 ~ + 80 ℃).
