LCD240128 dot matrix LCD blue film liquid crystal display (m

访问资料： 发布日期：2015-10-29 18:02

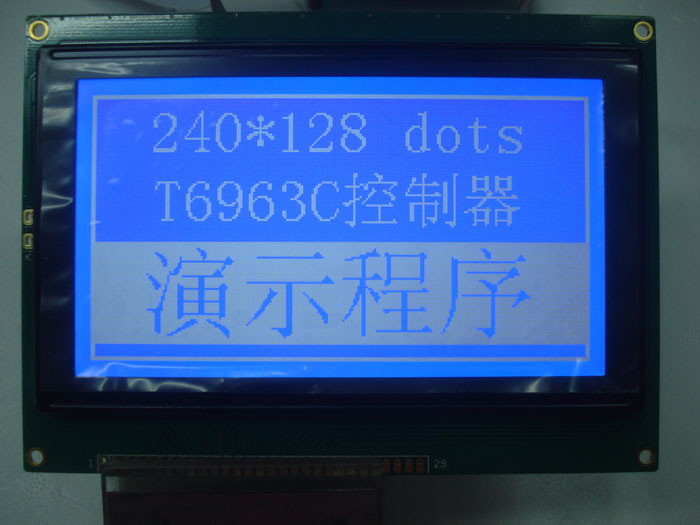

1.The physical map:

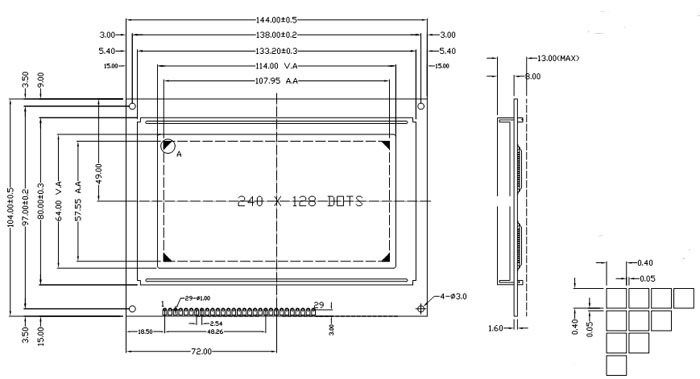

 2.Dimensions:

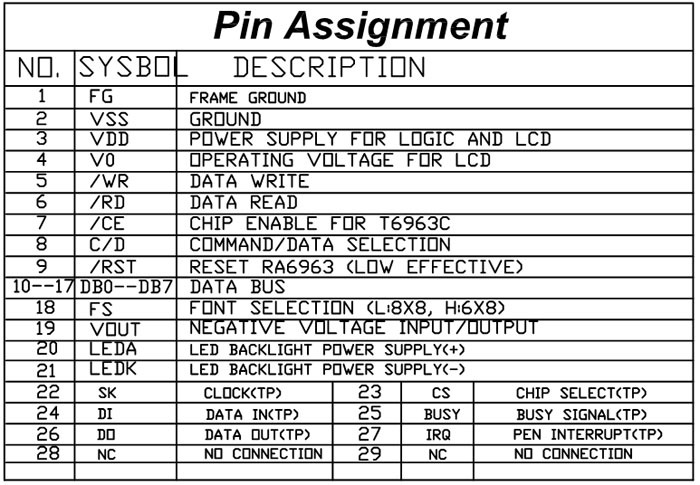

3.The interface definition:

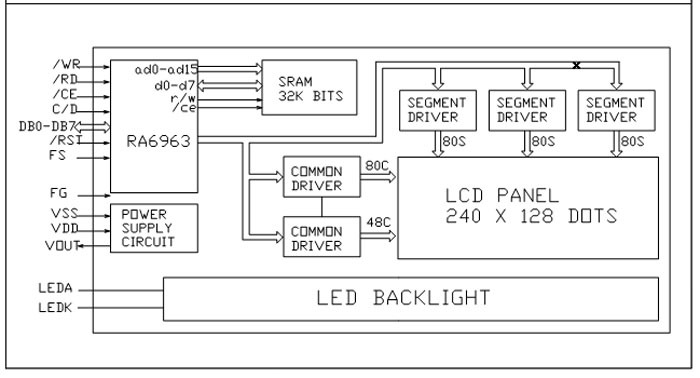

   4.The principle of composition:









  [Model]: G240128D
       [Product Type]: dot matrix LCD module
       [Display]: 240 (column) * 128 (OK) point
       [Dimensions]: 144 * 104 * 13.5
       [Horizon size]: 114 × 64
       [Dot size]: 0.40 × 0.40
       [Display Mode]: green, blue, gray
       [Perspective Display]: 6:00 Perspective
       [Control chip]: T6963
       [Operating voltage]: + 5V / + 3.3V
       [Storage temperature]: room temperature (temperature 0 ~ + 50 ℃, Storage temperature -10 ~ + 60 ℃);Wide temperature (operating temperature -20 ~ + 70 ℃, Storage temperature -30 ~ + 80 ℃).
